Advanced Sheet Plastic Extrusion: The 2026 Industrial Engineering And Manufacturing Guide
Sheet plastic extrusion stands as a cornerstone technology in modern manufacturing, enabling the continuous production of flat thermoplastic sheets utilized across automotive, aerospace, packaging, and construction sectors. As the industrial landscape shifts toward higher precision, sustainable circular economies, and tighter polymer tolerance controls in 2026, mastering the nuances of extrusion processing is critical for production engineers and product designers alike.
The Core Mechanics of Continuous Polymer Sheet Production
The sheet extrusion process transforms raw thermoplastic pellets into uniform, high-tolerance continuous sheets. The operation relies on converting solid resin into a homogeneous, viscous melt through thermal energy and mechanical shear, then forcing it through a specialized die.
- Material Feed and Drying: Hygroscopic engineering resins such as Polycarbonate (PC), Polyethylene Terephthalate Glycol (PETG), and Acrylonitrile Butadiene Styrene (ABS) require precise pre-drying to moisture levels typically below 0.02% to prevent polymer degradation and surface blistering.
- Plasticating and Compressing: The material enters the feed throat and moves down the rotating screw inside the heated barrel. Modern 2026 extrusion lines utilize barrier screws with mixing heads to ensure complete melt uniformity and consistent thermal profiles.
- Melt Filtration: Before reaching the die, the polymer melt passes through a continuous screen changer. This removes unmelted agglomerates and external contaminants without disrupting line pressure or output rates.
Die Design and Thermal Management Parameters
The extrusion die dictates the initial cross-sectional geometry and gauge distribution of the plastic sheet. In high-precision applications, coat-hanger manifold designs are universally adopted to distribute the polymer evenly across wide widths while minimizing residence time and shear stress.
Operational Standard for Lip Adjustments: Thermal expansion of the die steel during high-temperature processing requires automated feedback loops. Die lips are managed via automated bolt heaters or thermal expansion actuators connected downstream via Beta-gauge thickness sensors to maintain micron-level gauge control.
Temperature control zones along the barrel and die must be meticulously calibrated based on the specific rheological behavior of the resin. Excessive temperatures cause polymer chain scission, while insufficient heat leads to incomplete fusion and high melt pressure spikes.
| Polymer Family | Typical Melt Temperature (°C) | Recommended Screw L/D Ratio | Key Processing Challenges |
|---|---|---|---|
| High-Impact Polystyrene (HIPS) | 180°C - 220°C | 24:1 to 30:1 | Edge curling and rapid cooling distortion |
| Polycarbonate (PC) | 280°C - 320°C | 30:1 to 32:1 | High moisture sensitivity; requires intense drying |
| Polypropylene (PP) | 200°C - 250°C | 24:1 to 28:1 | High volumetric shrinkage; internal stress management |
| PETG | 210°C - 240°C | 24:1 to 30:1 | Tacky melt behavior; requires polished chill rolls |
Plastic Extrusion Cooling System at Christopher Bryant blog

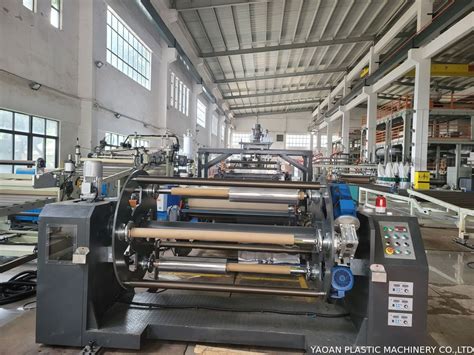

Downstream Calendering and Cooling Technologies
Once the molten polymer exits the die lip, it enters the polishing stack, also known as the chill roll unit. This phase dictates the surface finish, optical clarity, and dimensional stability of the final sheet.
- Three-Roll Vertical or Inclined Stacks: The melt is drawn between a series of internally cooled, chrome-plated metal rolls. The nip pressure between the first and second rolls sets the final thickness and imparts textures like matte, hair-cell, or high-gloss finishes.
- Temperature Gradient Management: Each roll in the stack is maintained at independently controlled temperatures using pressurized water or oil circulation units to prevent rapid surface quenching that introduces internal thermal stresses.
- Edge Trimming and Haul-Off: Razor-slitters or circular shear knives trim the thicker, unstable edges (edge beads) of the sheet. These trimmings are immediately fed into an inline granulator, pelletized, and blended back into the virgin feed stream to minimize material waste.
Comparative Analysis: Extrusion Versus Alternative Sheet Manufacturing
Selecting the appropriate manufacturing methodology depends on production volume, material selection, mechanical performance requirements, and tooling investments.
| Evaluation Metric | Sheet Plastic Extrusion | Compression Molding | Injection Molding (Thin Plates) |
|---|---|---|---|
| Production Volume | High volume, continuous runs | Low to medium volume | Very high volume, complex geometries |
| Part Dimensions | Continuous length, variable width | Limited by press platen size | Strictly bound by mold cavity size |
| Tooling Investment | Moderate to High | Low to Moderate | Extremely High |
| Material Utilization | High (with regrind integration) | Moderate (flash waste) | High (runner systems recycled) |
| Internal Stress Levels | Low to Moderate (controlled cooling) | Very Low | High (rapid injection pressures) |
Quality Assurance, Defect Mitigation, and Troubleshooting
Maintaining compliance with strict industrial standards requires real-time monitoring and immediate troubleshooting protocols. Modern extrusion lines integrate automated optical inspection (AOI) systems that detect gels, black specks, and surface scratches at line speeds.
- Crowning and Bowing: Caused by asymmetrical cooling between the top and bottom chill rolls. Remedy: Adjust the temperature differential between the rolls or modify the nip pressure distribution.
- Sharkskin and Melt Fracture: Caused by excessive shear stress at the die exit. Remedy: Increase die temperature, apply fluoropolymer processing aids, or redesign the die land length.
- Gauge Variations (Transverse Direction): Caused by localized temperature fluctuations or incorrect die lip gaps. Remedy: Calibrate thermal zones and perform manual or automated lip adjustments using closed-loop thickness scanning data.
Frequently Asked Questions
What is the primary function of the extrusion die in sheet manufacturing?
The extrusion die shapes the pressurized polymer melt into a uniform flat profile and initiates the gauge distribution before it enters the cooling stack. It relies on internal manifold geometries to ensure even pressure and flow across the entire width of the sheet.
How do manufacturers handle scrap reduction in plastic sheet lines?
Manufacturers utilize inline edge trimmers coupled with granulators that chop scrap material immediately, blending it back with virgin resin via automated proportioning valves to maintain consistent material properties.
Why is polymer drying mandatory prior to sheet extrusion?
Moisture trapped in hygroscopic resins causes hydrolytic degradation during high-temperature processing, resulting in surface bubbles, reduced molecular weight, and diminished mechanical strength.
What distinguishes a barrier screw from a conventional single-stage extrusion screw?
A barrier screw features a secondary flight that separates the un-melted polymer pellets from the melted polymer pool, significantly improving melting efficiency, thermal homogeneity, and output stability.
Can recycled polymers (PCR) be processed effectively using standard extrusion lines?
Yes, modern sheet lines equipped with degassing vents and melt filtration systems can process Post-Consumer Recycled (PCR) resins, though screw designs and temperature profiles often require adjustment to handle variable melt flow indices.
What role do chill rolls play in optical clarity?
Chill rolls rapidly quench and smooth the outer surfaces of the molten sheet against highly polished chrome surfaces, minimizing crystallization in semi-crystalline polymers and preventing surface haze.
